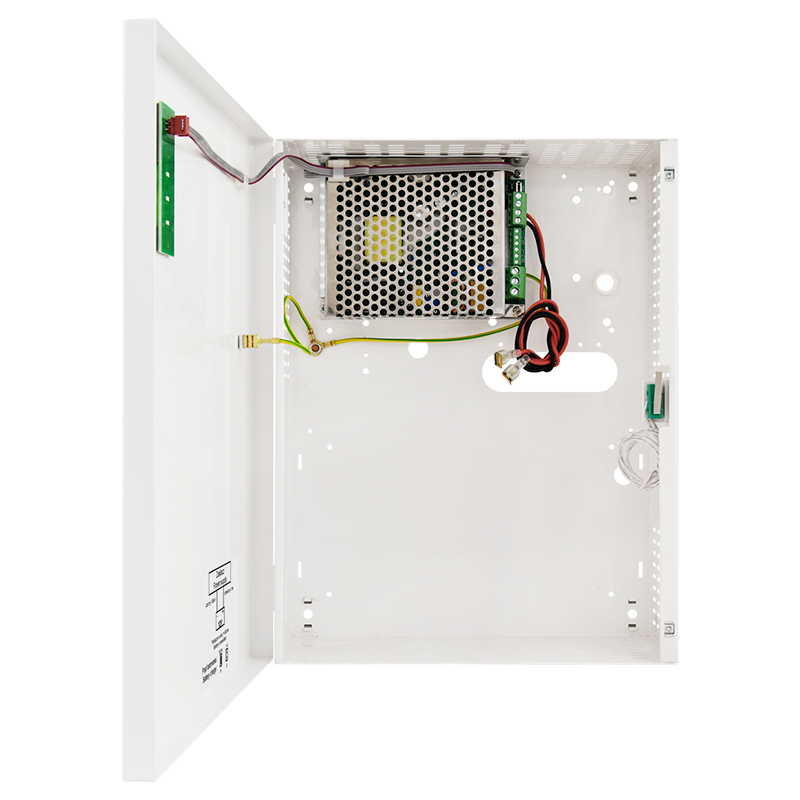

Fuente Conmutada con Respaldo PULSAR® HPSG2 13,8V/3A/17Ah - Grado 2//PULSAR® HPSG2 13,8V/3A/17Ah Buffer Switch Mode PSU - Grade 2

Ref.: HPSG2-12V3A-C

Fuente de alimentación: 200 ÷ 240VAC. Salida de fuente de alimentación: 3A / 13.8VDC. Cumple con los estándares: (1) Construcción compatible con EN50131, GRADO 1 y 2. (2) Norma de control de acceso EN60839-11: 2013, Grado 1 y 2. Corriente de carga de la batería: 0.5A / 1A. Batería: 1 x 7Ah / 1 x 17Ah. Rendimiento: 86%. Dimensiones: 230 x 300 x 82 [+/- 2 mm], distancia al suelo: 8 mm. Protecciones: SCP, OLP, OVP, UVP, sabotaje - apertura del recinto. Salidas técnicas tipo de relé: (1) EPS - fallo de alimentación de CA, (2) APS - fallo de batería. Indicación óptica LED. Material: chapa DC01, 0,7 mm, RAL9003 (blanco), metálico. IP20.//Power supply: 200÷240VAC. Power supply output: 3A/13.8VDC. Compliant with standards: (1) Construction compliant with EN50131, GRADE 1 and 2. (2) Access control norm EN60839-11:2013, Grade 1 and 2. Battery charging current: 0.5A/1A. Battery: 1 x 7Ah / 1 x 17Ah. Efficiency: 86%. Dimensions: 230 x 300 x 82 [+/-2 mm], distance from floor: 8 mm. Protections: SCP, OLP, OVP, UVP, tamper – opening of enclosure. Technical outputs relay type: (1) EPS – AC power failure, (2) APS – battery failure. LED optical indication. Material: sheet metal DC01, 0.7mm, RAL9003 (white), metallic. IP20.

Fuente Conmutada con Respaldo PULSAR® HPSG2 13,8V/3A/17Ah - Grado 2//PULSAR® HPSG2 13,8V/3A/17Ah Buffer Switch Mode PSU - Grade 2
Fabricación Bajo Pedido //Produced on Request

109,20 €
