Fuente PULSAR® para Switches PoE con Respaldo 54VDC/4x17Ah/300W//PULSAR® Buffer PSU for PoE Switches, 54VDC/4x17Ah/300W

Ref.: SWB-300

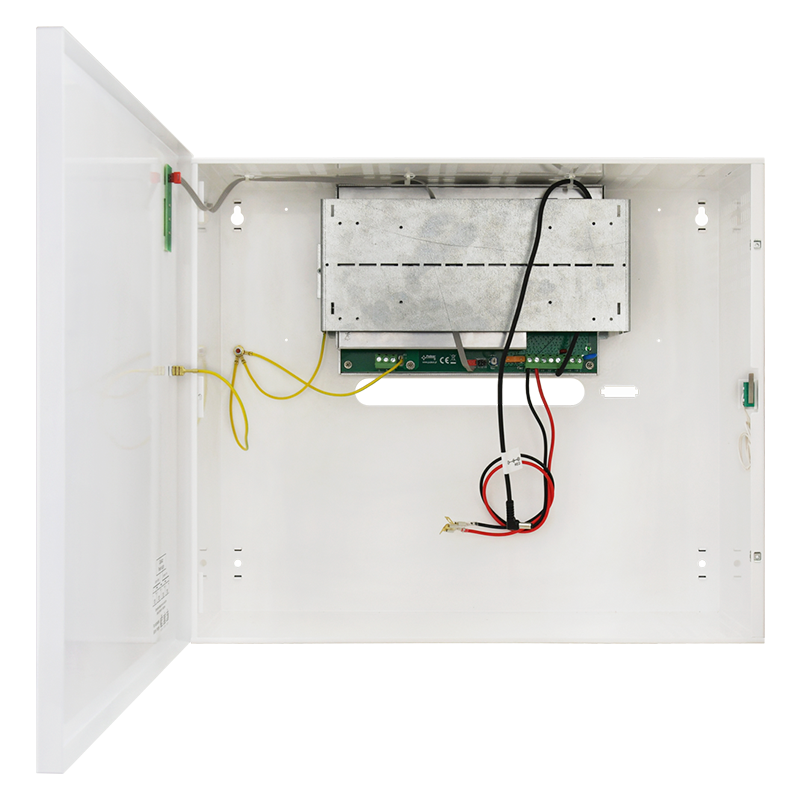

El SWB-300 está diseñado para la alimentación ininterrumpida de switches PoE con 54 V CC. Fue diseñado en base a un módulo de fuente de alimentación conmutada de alta eficiencia energética colocado en caja metálica (color RAL 9003). La caja tiene espacio para 4 uds. De batería de 17 Ah / 12 V (SLA) y está equipada con un interruptor de sabotaje que indica la apertura de la puerta (panel frontal). El dispositivo está equipado con una placa de montaje universal extraíble, que permite montar switches PoE con dimensiones de hasta 245x150x90 (WxHxD) [mm]. Por ejemplo, los modelos de Pulsar: S64, SG64, SFG64, SFG64F1, S108, SG108, SF108. Fuente de alimentación: 200 ÷ 240VAC. Salida de alimentación: 54VDC / 300W, cable de alimentación incluido - JACK 5,5 / 2,1. Corriente de carga de la batería: 0.5A / 1A / 2A. Batería: 4 x 7Ah / 4 x 17Ah. Eficiencia 87%. Dimensiones: 460 x 390 x 173 [+/- 2 mm], distancia al suelo: 8 mm. Placa de montaje: blacha (BM1), 245 x 150 [+/- 2 mm]. Protecciones SCP, OLP, OVP, UVP, OHP, sabotaje - apertura. Cierre: atornillado (posible montaje con cerradura). Indicación: indicación óptica LED. Material: chapa DC01, 1 mm, RAL9003 (blanco), metálico.//Buffer power supply system for PoE switches, SWB-300 is designed for uninterrupted power supply of PoE switches with 54 V DC. It was designed based on high energy efficiency switching power supply module placed in metal enclosure (color RAL 9003). Enclosure has a place for 4 pcs of 17 Ah / 12 V (SLA) battery and is equipped with a tamper switch signaling opening the door (front panel). Device is equipped with removable universal mounting plate, which allows to mount PoE switches with dimensions up to 245x150x90 (WxHxD) [mm]. For example Pulsar’s models: S64, SG64, SFG64, SFG64F1, S108, SG108, SF108. Power supply: 200÷240VAC. Power supply output: 54VDC/300W, power cable included - JACK 5,5 / 2,1. Battery charging current: 0.5A/1A/2A. Battery: 4 x 7Ah / 4 x 17Ah. Efficiency 87%. Dimensions: 460 x 390 x 173 [+/-2 mm], distance from floor: 8 mm. Mounting plate: blacha (BM1), 245 x 150 [+/-2 mm]. Protections SCP, OLP, OVP, UVP, OHP, tamper – opening of enclosure. Closing: bolted (lock assembly possible). Indication: LED optical indication. Material: sheet metal DC01, 1mm, RAL9003 (white), metallic.

Fuente PULSAR® para Switches PoE con Respaldo 54VDC/4x17Ah/300W//PULSAR® Buffer PSU for PoE Switches, 54VDC/4x17Ah/300W
Fabricación Bajo Pedido //Produced on Request

363,30 €

[[Algunos de nuestros productos necesitan ser especificados con algunas opciones de configuración. Por favor, no olvides darnos esa información en los campos de textos opcionales que te aparecen en el carro de la compra.///Some of our products need to be specified with some configuration options. Please, don't forget to provide us with those information in the Cart page.]]
