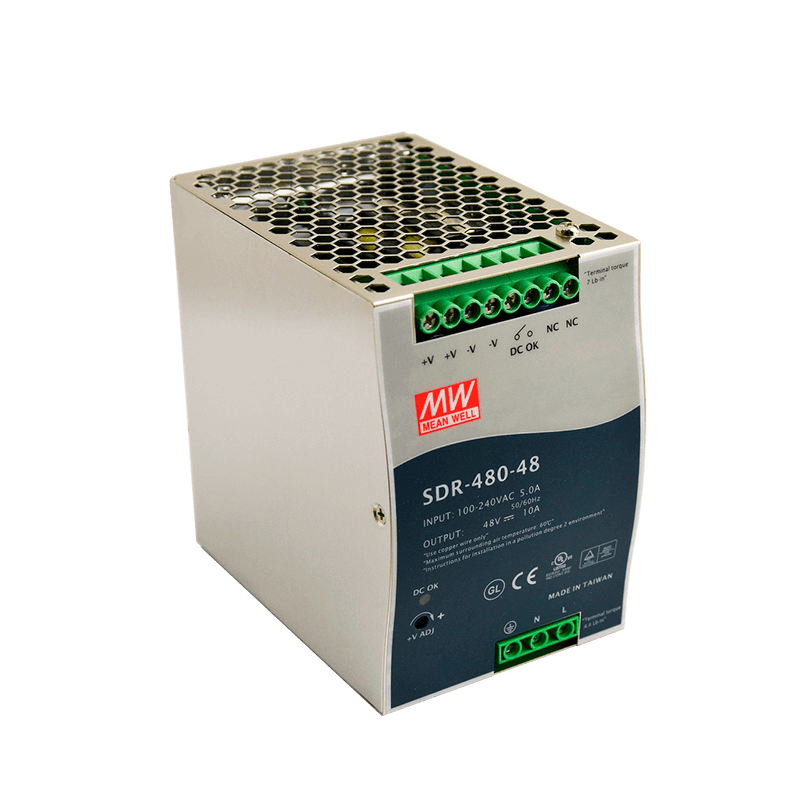

Fuente MEANWELL® SDR-480//MEANWELL® SDR-480 Power Supply Unit

Ref.: SDR-480-48

Fuente de alimentación CA-CC para anclar en carril DIN TS-35/7.5 o 15, de salida simple, con función PFC activa. Con LED indicador de encendido y protecciones de sobrecarga, corto-circuito y sobretensión. Refrigeración pasiva por paso de aire. Certificada UL (UL508) y EN61000-6-2 (EN50082-2). Ideal para sistemas industriales de control, fabricación, automatización y todo tipo de dispositivos electro-mecánicos. Con relé de salida DC. Tensión de salida de 48 VDC a 10 Amp. Ratio de potencia de salida 480 W.//Single Output Industrial DIN RAIL PSU. Universal AC input / Full range. Protections: Short circuit / Overload / Over voltage / Over temperature. Cooling by free air convection. Built-in active PFC function, PF>0.93. High efficiency 91% and low power disipation. UL508 Approved. EN61000-6-2 Immunity Level. Can be installed on DIN rail TS-35/7.5 or 15. 100% full load burn-in test. Applications: Industrial control systems, semiconductor fabrication equipment, factory automation, electro-mechanical apparatus. With DC relay output. DC voltage output: 48 VDC - 10 Amp current intensity. Output rated power: 480 W.

Fuente MEANWELL® SDR-480//MEANWELL® SDR-480 Power Supply Unit
Fabricación Bajo Pedido //Produced on Request

330,30 €

[[Algunos de nuestros productos necesitan ser especificados con algunas opciones de configuración. Por favor, no olvides darnos esa información en los campos de textos opcionales que te aparecen en el carro de la compra.///Some of our products need to be specified with some configuration options. Please, don't forget to provide us with those information in the Cart page.]]
