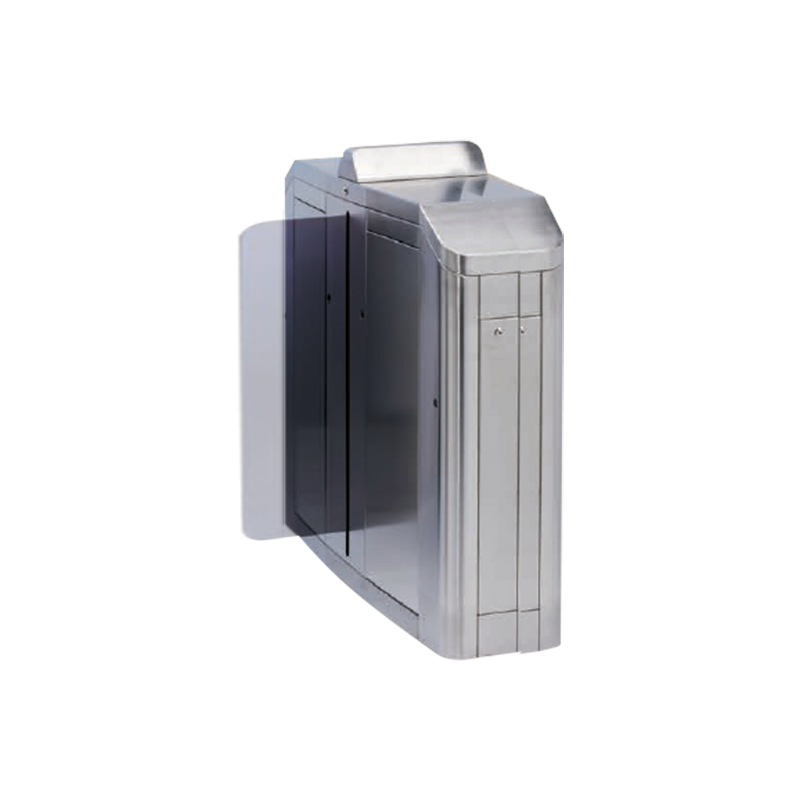

Mecanizado ARGUSA® PCO-RSV3/1 en AISI 304//ARGUSA® PCO-RSV3/1 Motor-Driven Sliding Gate (AISI 304)

Ref.: 1T05010022207

Mueble extremo para pasillo/portillo automático. 1, fabricado en acero inoxidable AISI-304, funcionamiento eléctrico bidireccional, panel corredero de ancho estandar de cristal security de 10 mm de espesor (color transparente), altura 900 mm. Incluye mecanizado para alojar lector estandar y pictograma indicativo. Sistema anti-pánico, con apertura del pasillo en caso de emergencia. Para pasillo de ancho estándar.//High transit control sliding gate. End unit for hall / gate automatic. 1, bodywork in AISI-304 1.5 mm thick burnished finish stainless steel plate. Bidirectional electric system. Concealable safety-glass sliding panels, 10 mm thick (transparent colour). 900 mm High. Illuminated signage pictograms showing the operation of the sliding gates. Mechanism adapted to a determined operation, with a positioning and damping system for the panel, with a safety system in case of emergency. For standard sliding gate.

Mecanizado ARGUSA® PCO-RSV3/1 en AISI 304//ARGUSA® PCO-RSV3/1 Motor-Driven Sliding Gate (AISI 304)
Fabricación Bajo Pedido //Produced on Request

5.343,94 €

[[Algunos de nuestros productos necesitan ser especificados con algunas opciones de configuración. Por favor, no olvides darnos esa información en los campos de textos opcionales que te aparecen en el carro de la compra.///Some of our products need to be specified with some configuration options. Please, don't forget to provide us with those information in the Cart page.]]
Métodos de pago // Payments Methods

ACCESORIOS RELACIONADOS//RELATED ACCESORIES
1CTL080000053

Tornillo Allen M6x20 DIN-912 CIN|RR|.//Allen screw M6x20 DIN-912 CIN | RR |.

Consultar//Consult
1A09030000007

Contador digital con batería.//Digital counter with battery.

176,40 €
1A09050000014

Indicadores luminosos (PICTOGRAMA) de LEDs con señal de flecha verde y aspa rojo. Modelo cuadrado indicativo de función. Dimensiones 50x50 mm.//LED indicators (PICTOGRAM) of LEDs with green arrow and red arrow sign. Square model indicative of function. Dimensions 50x50 mm.

99,96 €
1A09050000017

PICTOGRAMA modelo cuadrado con indicativos de situación. Dimensiones 70x70 mm.//PICTOGRAM square model with situation indications. Dimensions 70x70 mm.

Consultar//Consult
1CAG080000001

Arandela GROWER M6 DIN-127 CIN|RR|.//GROWER M6 DIN-127 CIN | RR | washer.

Consultar//Consult
1CCR000000005

Rodamiento rígido de bolas 6206 2RS*.//Deep groove ball bearing 6206 2RS*.

Consultar//Consult
1CCR000000023

Rodamiento rígido de bolas 6203 2RS DIN-625*.//Deep groove ball bearings 6203 2RS DIN-625*.

Consultar//Consult
1CCR000000024

Rodamiento rígido de bolas 6004 2RS*.//Deep groove ball bearing 6004 2RS*.

Consultar//Consult
1CTL080000053

Tornillo Allen M6x20 DIN-912 CIN|RR//Allen screw M6x20 DIN-912 CIN | RR

Consultar//Consult
1CTL080000089

Tornillo Allen C/PLA M6x16 DIN7991|RR|.//Allen screw C / PLA M6x16 DIN7991 | RR |.

Consultar//Consult
1CTL140000024

Tornillo Allen M6x16 8.8 DIN-912 CIN|RR|.//Allen screw M6x16 8.8 DIN-912 CIN | RR |.

Consultar//Consult
1D00000000276

Reductora siin fin con corona RMI 28 FL MEJO* //Endless gearbox with crown RMI 28 FL MEJO*

Consultar//Consult
1D02000000702

Chaflán de 2 Lectores para PCO-RSV3. Chaflán para alojamiento de 2 Lectores sobre mueble PCO-RSV3 en acero AISI 304.//PCO-RSV3 2 Readers Camfer. Chamfer for accommodation of 2 readers into a PCO-RSV3 sliding gate, made of AISI 304 steel.

Consultar//Consult
1D06000000018

Biela para cristal ancho en PCO-RSV4E MECA.//Connecting rod for wide glass in PCO-RSV4E MECA.

Consultar//Consult
1D08000000014

Eje principal de biela para PCO-RSV PAVONADO|RR|.//Main crank shaft for PCO-RSV PAVONADO | RR |.

Consultar//Consult
1D08000000243

Arandela Avell. 25x3 M6 AP-110S/-D DICRO*.//Avell washer. 25x3 M6 AP-110S / -D DICRO *.

Consultar//Consult
1D08000000609

Casquillo separador superior para PCO-RSV DIC*//Upper spacer sleeve for PCO-RSV DIC*

Consultar//Consult
1D08000000677

Eje con rodamiento para cristal PCO-RSV MEC/DCR.//Shaft with bearing for PCO-RSV MEC / DCR glass.

Consultar//Consult
1L33000000001

Arandela 25X3 M6 Varios.//Washer 25X3 M6 Several.

Consultar//Consult
1SUPPCO3

Suplemento para hacer pasillos con un solo mueble PCO-RSV3.//Supplement to build a lane with a single PCO-RSV3 unit.

Consultar//Consult
AR-PCO-BUZ

Mecanizado para alojar lectores motorizados, buzones traga-tarjetas ó lectores de código de barras, en equipos dobles. Incluye cajón para recolecta de tarjetas en caso de lectores motorizados ó buzones tragatarjetas//Mechanized to accommodate motorized readers, Card / Badge / Wristband Collector or barcode readers in double teams. Includes box for collection of cards.

Consultar//Consult
AR-PCO-CMZ

Adaptaciones a medida para alojar lectores en el chaflán.//Adaptation for any type of reader.

Consultar//Consult
D00000000638

Reductora para mueble PCO-RSV3 de ancho estándar MRS28FL.//MRS28FL Reduction for PCO-RSV3 sliding gate with standard width.

Consultar//Consult
