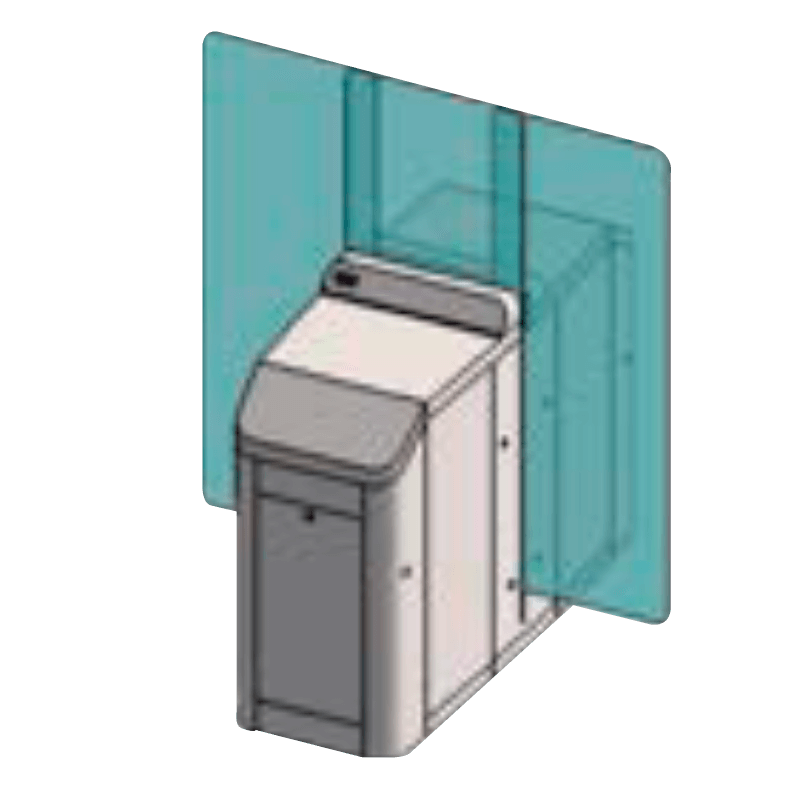

Mecanizado ARGUSA® PCO-RSV3EH/2 en AISI 304//ARGUSA® PCO-RSV3EH/2 Motor-Driven Sliding Gate (AISI 304)
Ref.: 1T05090022207Mueble intermedio para pasillo/portillo automático. 1, fabricado en acero inoxidable AISI-304, funcionamiento eléctrico bidireccional, paneles correderos de ancho estandar de cristal security de 10 mm de espesor (color transparente), altura 1600 mm. Incluye mecanizado para alojar lector estandar y pictograma indicativo. Sistema anti-pánico, con apertura del pasillo en caso de emergencia. Para pasillo de ancho especial (para personas de movilidad reducida).//High transit control sliding gate. Intermediate unit for hall / gate automatic. 1, bodywork in AISI-304 1.5 mm thick burnished finish stainless steel plate. Bidirectional electric system. Concealable safety-glass sliding panels, 10 mm thick (transparent colour). 1600 mm High. Illuminated signage pictograms showing the operation of the sliding gates. Mechanism adapted to a determined operation, with a positioning and damping system for the panel, with a safety system in case of emergency. For special width sliding gate (people with mobility reduced).
17.765,00 €
1CTL080000053 | Tornillo Allen M6x20 DIN-912 CIN|RR|.//Allen screw M6x20 DIN-912 CIN | RR |. |
Consultar//Consult | ||
1A09030000007 | Contador digital con batería.//Digital counter with battery. |
176,40 € | ||
1A09050000014 | Indicadores luminosos (PICTOGRAMA) de LEDs con señal de flecha verde y aspa rojo. Modelo cuadrado indicativo de función. Dimensiones 50x50 mm.//LED indicators (PICTOGRAM) of LEDs with green arrow and red arrow sign. Square model indicative of function. Dimensions 50x50 mm. |
99,96 € | ||
1A09050000017 | PICTOGRAMA modelo cuadrado con indicativos de situación. Dimensiones 70x70 mm.//PICTOGRAM square model with situation indications. Dimensions 70x70 mm. |
Consultar//Consult | ||
1CAG080000001 | Arandela GROWER M6 DIN-127 CIN|RR|.//GROWER M6 DIN-127 CIN | RR | washer. |
Consultar//Consult | ||
1CCR000000005 | Rodamiento rígido de bolas 6206 2RS*.//Deep groove ball bearing 6206 2RS*. |
Consultar//Consult | ||
1CCR000000023 | Rodamiento rígido de bolas 6203 2RS DIN-625*.//Deep groove ball bearings 6203 2RS DIN-625*. |
Consultar//Consult | ||
1CCR000000024 | Rodamiento rígido de bolas 6004 2RS*.//Deep groove ball bearing 6004 2RS*. |
Consultar//Consult | ||
1CTL080000053 | Tornillo Allen M6x20 DIN-912 CIN|RR//Allen screw M6x20 DIN-912 CIN | RR |
Consultar//Consult | ||
1CTL080000089 | Tornillo Allen C/PLA M6x16 DIN7991|RR|.//Allen screw C / PLA M6x16 DIN7991 | RR |. |
Consultar//Consult | ||
1CTL140000024 | Tornillo Allen M6x16 8.8 DIN-912 CIN|RR|.//Allen screw M6x16 8.8 DIN-912 CIN | RR |. |
Consultar//Consult | ||
1D00000000276 | Reductora siin fin con corona RMI 28 FL MEJO* //Endless gearbox with crown RMI 28 FL MEJO* |
Consultar//Consult | ||
1D02000000702 | Chaflán de 2 Lectores para PCO-RSV3. Chaflán para alojamiento de 2 Lectores sobre mueble PCO-RSV3 en acero AISI 304.//PCO-RSV3 2 Readers Camfer. Chamfer for accommodation of 2 readers into a PCO-RSV3 sliding gate, made of AISI 304 steel. |
Consultar//Consult | ||
1D06000000018 | Biela para cristal ancho en PCO-RSV4E MECA.//Connecting rod for wide glass in PCO-RSV4E MECA. |
Consultar//Consult | ||
1D08000000014 | Eje principal de biela para PCO-RSV PAVONADO|RR|.//Main crank shaft for PCO-RSV PAVONADO | RR |. |
Consultar//Consult | ||
1D08000000243 | Arandela Avell. 25x3 M6 AP-110S/-D DICRO*.//Avell washer. 25x3 M6 AP-110S / -D DICRO *. |
Consultar//Consult | ||
1D08000000609 | Casquillo separador superior para PCO-RSV DIC*//Upper spacer sleeve for PCO-RSV DIC* |
Consultar//Consult | ||
1D08000000677 | Eje con rodamiento para cristal PCO-RSV MEC/DCR.//Shaft with bearing for PCO-RSV MEC / DCR glass. |
Consultar//Consult | ||
1L33000000001 | Arandela 25X3 M6 Varios.//Washer 25X3 M6 Several. |
Consultar//Consult | ||
1SUPPCO3 | Suplemento para hacer pasillos con un solo mueble PCO-RSV3.//Supplement to build a lane with a single PCO-RSV3 unit. |
Consultar//Consult | ||
AR-PCO-BUZ | Mecanizado para alojar lectores motorizados, buzones traga-tarjetas ó lectores de código de barras, en equipos dobles. Incluye cajón para recolecta de tarjetas en caso de lectores motorizados ó buzones tragatarjetas//Mechanized to accommodate motorized readers, Card / Badge / Wristband Collector or barcode readers in double teams. Includes box for collection of cards. |
Consultar//Consult | ||
AR-PCO-CMZ | Adaptaciones a medida para alojar lectores en el chaflán.//Adaptation for any type of reader. |
Consultar//Consult | ||
D00000000638 | Reductora para mueble PCO-RSV3 de ancho estándar MRS28FL.//MRS28FL Reduction for PCO-RSV3 sliding gate with standard width. |
Consultar//Consult |
