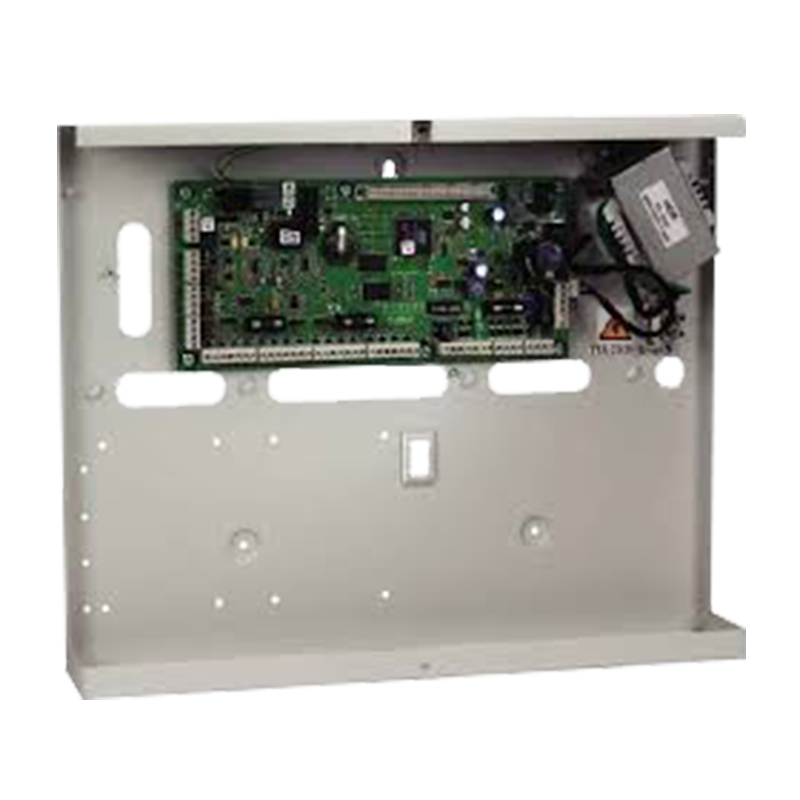

Central HONEYWELL™ VISTA-12DT - G2//HONEYWELL™ VISTA-12DT Control Panel - G2
Ref.: VISTA-12DTControl/Comunicador 6-11 zonas ampliable a 22 cableadas y/o vía radio. 3 particiones (1 común). 16 códigos de usuario con niveles de autorización. Hasta 4 salidas de relé, 2 de trigger en placa. Hasta 8 calendarios. Registro de 254 eventos.//Galaxy Dimension GD-48 control panel with PSTN Dialler is a hybrid intruder control panel with integrated door control functionality. It is designed for mid to large commercial installations and is fully compliant to the latest PD6662:2010 and EN50131 standards. Up to 48 zones. Up to 64 doors controlled. Protecting up to 32 groups. Up to 1000 users. Up to 67 weekly schedules available. Up to 32 yearly holiday schedules. Door access controlled by access templates and group set status. Areas behind a door can be unset automatically via card reader. Access event log with 1000 events recorded in panel (separate intruder log). GPRS, Ethernet, PSTN, USB communications options. Groups can be set via door control readers. Evacuation control will allow doors to unlock in the event of fire. Up to 32 audio verification channels. Multi-language interface. Compatible with all wiegand readers. Up to 8 wireless interface modules (RF portals). Up to 192 wireless zones. Up to 100 key fobs. Full bi-directional agile routing (patented technology). Full range of wired and wireless intrusion and environmental detectors.
[[Puedes consultar el precio de este producto enviando un email a: ///You can consult the price of this product by sending a email to: ]] store@emacs.es
| No hay accesorios disponibles para este producto.//No accessories available for this product. |
Caja PULSAR® EXPANDER 1 para Expansores de Intrusión//PULSAR® Casing EXPANDER 1 for Alarm Expanders
1
Uso previsto: DSC, SATEL, PARADOX, RISCO. Dimensiones externas del gabinete: W = 218, H = 150, D + D1 = 50 + 8 [+/- 2 mm]. Protección contra manipulaciones: manipulación - apertura de la carcasa. Notas: recinto montado en superficie, bloqueo - atornillado, distancia de la pared - 8 mm.//Intended use: DSC, SATEL, PARADOX, RISCO. External dimensions of the enclosure: W=218, H=150, D+D1=50+8 [+/- 2mm]. Tamper protection: tamper – opening of the enclosure. Notes: surface mounted enclosure, locking – bolted, distance from the wall - 8mm.
Caja PULSAR® 7/TRZ20/SATEL/GRADE3 para Centrales de Intrusión - G3//PULSAR® Casing 7/TRZ20/SATEL/GRADE3 for Alarm Panels - G3
1
Uso previsto: SATEL. La construcción cumple con EN50131, grado 3. Dimensiones externas del gabinete: W = 290, H = 280, D = 105 D1 = 15 [+/- 2 mm]. Transformador: TRZ 20VA / 16V / 18V, IP43. Batería de montaje: 7Ah / 12V. Protección contra manipulaciones: manipulación - apertura del recinto, desprendimiento de la pared. Notas: recinto montado en superficie, bloqueo - atornillado, distancia de la pared - 15 mm.//Intended use: SATEL. The construction compliant with EN50131, grade 3. External dimensions of the enclosure: W=290, H=280, D=105 D1=15 [+/- 2mm]. Transformer: TRZ 20VA/16V/18V, IP43. Fitting battery: 7Ah/12V. Tamper protection: tamper – opening of the enclosure, detachment from the wall. Notes: surface mounted enclosure, locking – bolted, distance from the wall - 15mm.
Caja PULSAR® 7/TRP40/SATEL para Centrales de Intrusión//PULSAR® Casing 7/TRP40/SATEL for Alarm Panels
0
Uso previsto: SATEL. Dimensiones externas del recinto: W = 250, H = 250, D + D1 = 80 + 8 [+/- 2 mm]. Dimensiones externas del panel frontal: W1 = 255, H1 = 255 [+/- 2 mm]. Transformador: TRP 40VA / 16V / 18V, IP30. Batería de montaje: 7Ah / 12V. Protección contra manipulaciones: manipulación - apertura de la carcasa. Notas: recinto montado en superficie, bloqueo - atornillado x4, distancia de la pared - 8 mm.//Intended use: SATEL. External dimensions of the enclosure: W=250, H=250, D+D1=80+8 [+/-2 mm]. External dimensions of the front panel: W1=255, H1=255 [+/-2 mm]. Transformer: TRP 40VA/16V/18V, IP30. Fitting battery: 7Ah/12V. Tamper protection: tamper – opening of the enclosure. Notes: surface mounted enclosure, locking – bolted x4, distance from the wall - 8mm.
Caja PULSAR® 7/TRP40/PAR/S para Centrales de Intrusión//PULSAR® Casing 7/TRP40/PAR/S for Alarm Panels
0
Uso previsto: PARADOX. Dimensiones externas del recinto: W = 250, H = 250, D + D1 = 80 + 8 [+/- 2 mm]. Dimensiones externas del panel frontal: W1 = 255, H1 = 255 [+/- 2 mm]. Transformador: TRP 40VA / 16V / 18V, IP30. Batería de montaje: 7Ah / 12V. Protección contra manipulaciones: manipulación - apertura de la carcasa. Notas: recinto montado en superficie, bloqueo - atornillado x4, distancia de la pared - 8 mm. Cantidad mínima de un solo lote: 100 piezas.//Intended use: PARADOX. External dimensions of the enclosure: W=250, H=250, D+D1=80+8 [+/-2 mm]. External dimensions of the front panel: W1=255, H1=255 [+/-2 mm]. Transformer: TRP 40VA/16V/18V, IP30. Fitting battery: 7Ah/12V. Tamper protection: tamper – opening of the enclosure. Notes: surface mounted enclosure, locking – bolted x4, distance from the wall – 8mm. Minimum quantity of a single lot: 100 pieces.
